Wrap Custom Motor - BN
Image may not reflect selected features

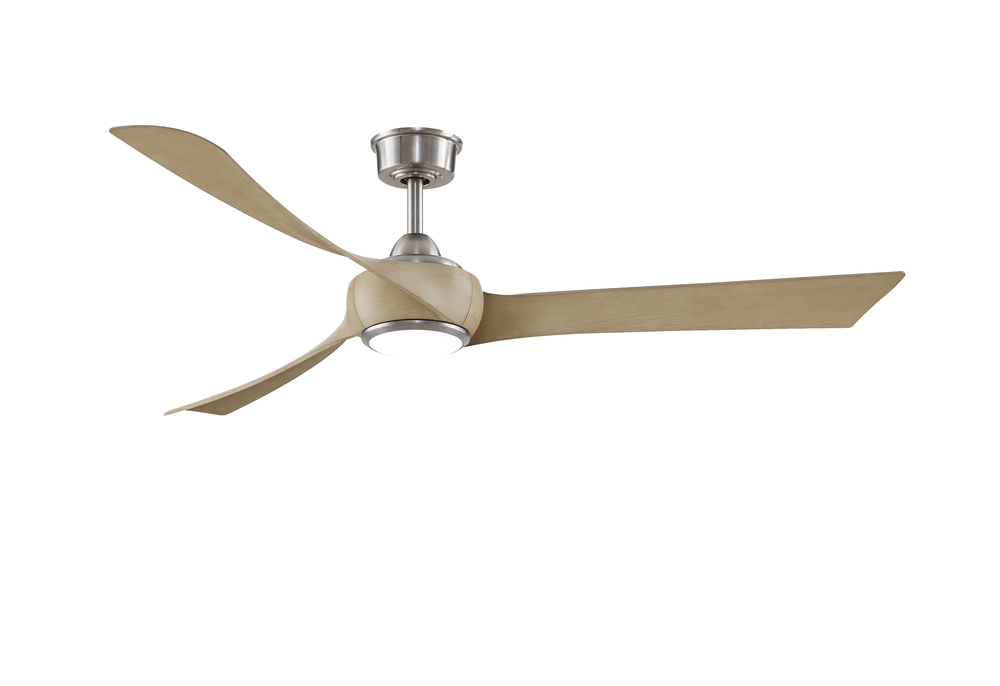

Wrap Custom Motor - BN (MAD8531BN) by Fanimation
Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Energy Information at High Speed
Airflow
11206 Cubic Feet per Minute
Electricity Rate
31 Watts (excluded lights)
Airflow Efficiency
366 Cubic Feet Per Minute Per Watt
Product Specification
Item #
MAD8531BN
Dimensions
Height: 15.96"
Width: 64.00"
Length: 64.00"
Additional product details
Vendor Item #
MAD8531BN
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Nickel
Style
Traditional
Option
Energy Star , Damp Rated
Voltage
10-99
Number of Blades
3 Blades
Location Rating
Damp Rated
Category
Fan-Multi
Finish
Brushed Nickel
Option
Damp
Family
Wrap Custom
Voltage
120 V
Additional Info
10,846 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and , ENERGY STAR Most Efficient 2020 , Set of 3 Damp Rated blades with multiple finish options and 18 watt LED light kit (sold separately) , TR205D handheld remote with CR2032 batteries included
Air Flow CFM
11206
Air Flow Efficiency
366
Amperage
0.43
Blade Pitch
Varied
Canopy
6.14 Dia x 2.55 H
Diameter
8.88
Down Rod Included
8
Electricity Used
31
Harmonized Codes
8414.51.3000
Length
64, 72, 84
Light Kit Included
No
Max Length
84
Max Width
84
Motor Fan Speed
16
Motor RPM
81
Motor Size
153 x 25
Motor Type
DC
Remote Control Included
TR205D
Ship Carton Height
7.6
Ship Carton Length
16.34
Ship Carton Width
8.86
Ship Weight
16.1
Sold By
Each
Warranty
Limited Lifetime
Weight
13.3
Airflow Efficiency Low
1172
Airflow Efficiency Medium
827
Avg Airflow Efficiency
420
Avg CFM Energy
8762
Avg Energy Use Watts
21
Avg Estimated Yearly Energy Cost
6
Avg Estimated Yearly Energy Cost on HIGH
9
Canopy Diameter
6.14 Dia
Canopy Height
2.55 H
Cap Included
Yes
Carton Cubic Feet
0.64
Cartons Per Unit
1
Case Height
7.6
Case Length
16.34
Case Quantity
1
Case Weight Pounds
16.1
Case Width
8.86
CEC Uploaded
Yes
Ceiling To Blade Edge
15.33
Ceiling To Bottom
15.96 , 16.55
CFM Low
3516
CFM Medium
7859
Compatible Accessories
CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCB1-52
Compatible Blades
BPW8531-64BL, BPW8531-64BN, BPW8531-64DWA, BPW8531-64N, BPW8531-64WE, BPW8531-64WW, BPW8531-72BL, BPW8531-72BN, BPW8531-72DWA, BPW8531-72N, BPW8531-72WE, BPW8531-72WW, BPW8531-84BL, BPW8531-84BN, BPW8531-84DWA, BPW8531-84N, BPW8531-84WE, BPW8531-84WW
Compatible Light Kits
LK8530BN
Compatible Wall Controls
TW306
Country of Origin
China
Current Draw High
0.43
Current Draw Low
0.05
Current Draw Medium
0.15
Damp Rated
Yes
DOE Classification
LSSD
DOE-FTC Uploaded
Yes
DOEFTC Uploaded
Yes
Downrod Length
8
Exempt from DOE Procedure
No
Fan Energy Star
Yes
Housing Diameter
8.88
Included Control
TR305
Included Control Type
Handheld
Leadwire
80
Max Ceiling Slope
27
Max Watt
31
Maximum Slope Degree
27
Motor Finish Method Type
Plated
Motor Reversible
Yes
Number of Blades
3
Number Of Speeds
16
Regulated Product
Yes
Reverse Switch Location
Control
RPM High (VI)
81
RPM Low (II)
29
RPM Medium (IV)
56
RPM Mini I
58
Safety Rating
UL Approved, cUL Approved
Voltage Cycles
60 hz
Watts Low
3
Watts Medium
10
Manufactured By
Fanimation


Other Details:
  • 10,846 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
  • Energy Star Most Efficient 2022
  • Set Of (3) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
  • Tr305 Handheld Remote With 23a Battery Included
Ceiling To Bottom
